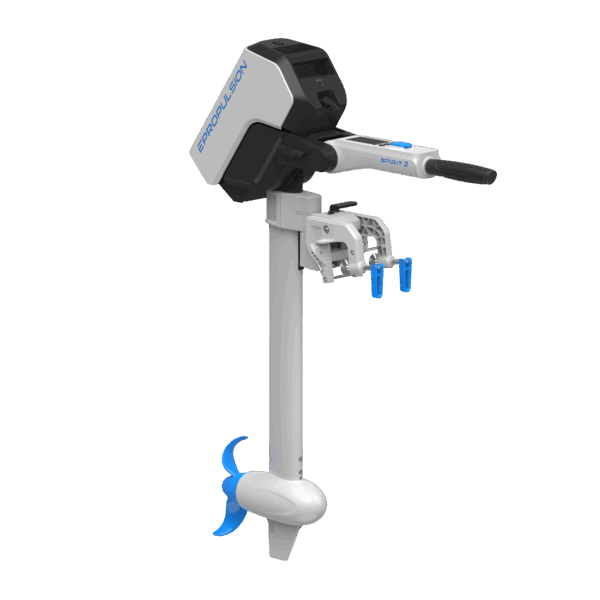

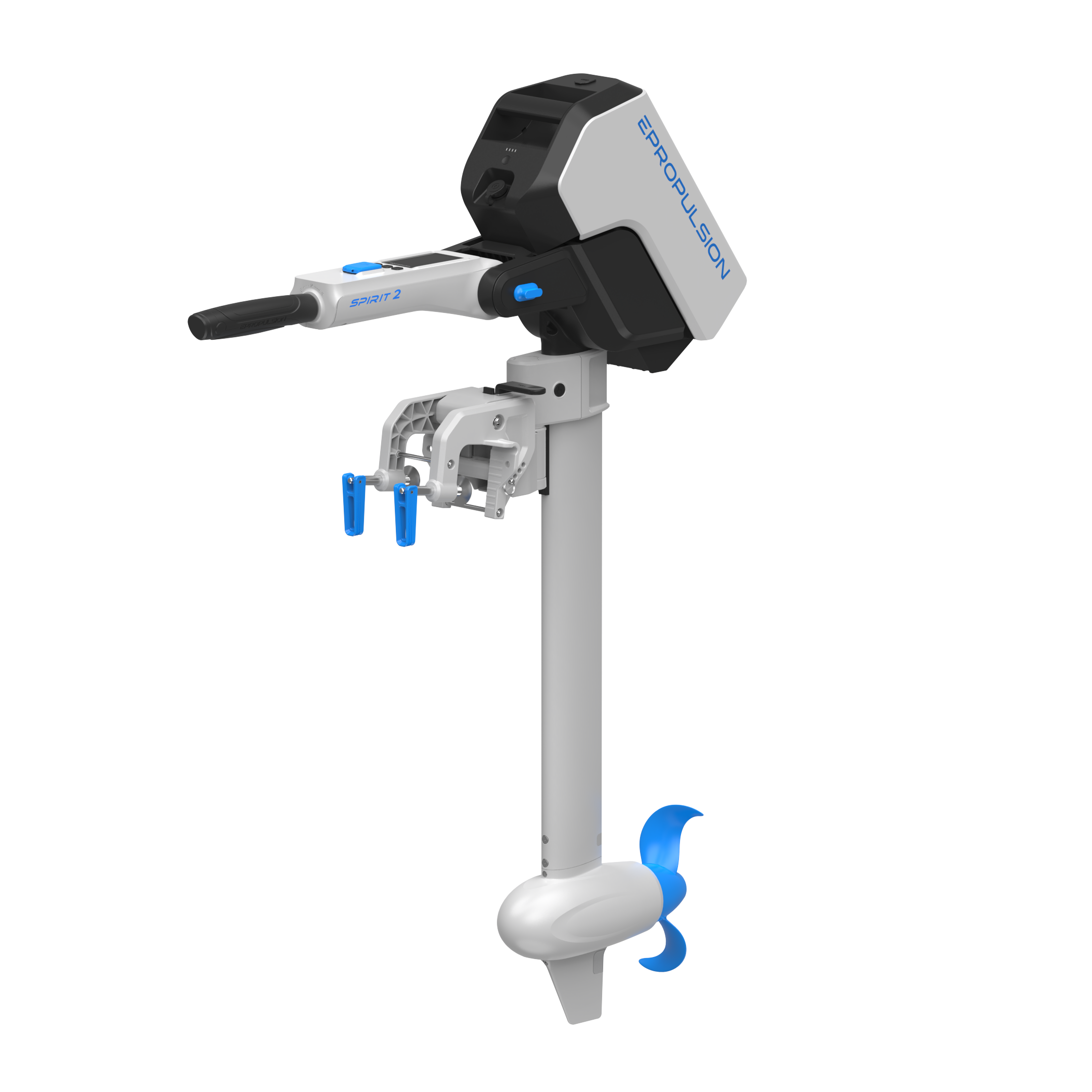

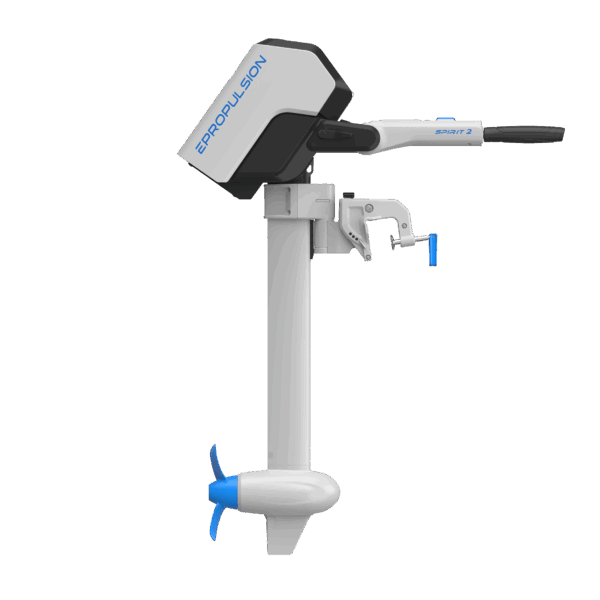

Epropulsion Spirit 2 (short shaft)
Epropulsion Spirit 2 (short shaft)
Epropulsion Spirit 2 (short shaft)
The Spirit 2 is a lightweight 2 kW electric outboard motor designed for effortless, quiet and eco-friendly boating. Its built-in 1539 Wh battery ensures excellent range and reliable performance.

Electric outboard motors are absolutely silent, produce no exhaust gases and cause no un-necessary waves. Of course, they are not as lively as fuel driven engines. They are sufficient though for leisurely motion.

Fuel propelled engines are restricted entirely or at certain times from operation on some waters. Those waters are open though, only for the use of electric motors.

A cruising speed of over 20 km/h, depending on the type of boat.

For GRABNER boats:
SPEED, MUSTANG S, MUSTANG, MUSTANG GT with standard supplied transom

ATTENTION SHIPPING:
This motor can only be shipped within the EU.
Shipping outside the EU is not possible!

For shipping by land, a dangerous goods rate of EUR 69, – is added to the shipping costs.

Note: Shipping by forwarding agent

Item no. 1734300000

2.999,00 EUR
- +
  • Product description
  • Technical data
  • Downloads
  • Hazard and safety instructions

The Spirit 2 pushes the boundaries of performance combined with portability! Despite its light weight and compact size, it is fitted with a 2 kW motor; in Sport mode (Boost), it can even deliver 3 kW for short bursts. The optimised hydrodynamic design reduces propeller vibrations, ensuring a smoother ride.

  • The latest generation of outboards with unrivalled high efficiency.
  • Very powerful and maximum reach with low volume and weight.
  • The direct drive makes the motor very quiet.
  • Fully waterproof (IP67*)
    * The motor is protected against dirt and water ingress (max. 30 minutes, max. 1 m).
  • Boost mode: Power increases by a factor of 1.5 for 60 seconds.
  • Lithium ionen battery with wireless quick-connect
  • Folding tiller for stepless speed regulation
  • Full-colour display

Scope of delivery:

  • Motor
  • Battery 1539 Wh
  • Charger 218 W
  • Emergency stop with wrist strap

PERFORMANCE

full throttlehalf throttle
(ca. 500 watt)		slow
(ca. 100 watt)
up to 20 km/h7 km/h~4 km/h
0:45 h3 h15 h

Speed and travel time depend on the type of boat, total weight, wind and waves.

Input power2,000 Watt
Peak input power (Boost)3,000 Watt
Nominal voltage48,1 V DC
Battery power1,539 Wh
Max. Running time (50 Watt)30 h 45 min
Rated speed1,700 to 2,100 rpm
Tiller angle of inclination-90° to 80°
Fixed tiller angele-90°, 0°, 45°, 80°
Steering angle±90°
Lifting angle70°, 90°
Trim device0° 7° 14°  21°/ 70°
Shallow-water angle35°
Dimension82.5 x 19 x 101.5 cm
Shaft length62.5 cm
Motor weight10.4 kg
Transom mount2.6 kg
Battery weight10.4 kg
2-blade propellerØ240 mm, pitch 167 mm
Protection classIP67
GebrauchsanweisungSpirit_2_Bedienungsanleitung_DE.pdf

Manufacturer information
alltechnik Handelsges. m.b.H
Allroundmarin
Rheinboldtstraße 11-13
2362 Biedermannsdorf
Austria
www.allroundmarin.at
office@allroundmarin.com

Hazard statements
This article is Rechargeable LI-ion Battery, Watt hour rate 1539 Wh, which belong to he Class 9 - Lithium Battery hazard goods.

Safety instructions
Eye Flush eyes with plenty of water for a least 15 minutes, occasionally lifting the upper and lower eyelids. Get medical aid.
Skin Remove contaminated clothes and rinse with planty of water or shower for 15 minutes. Get medical aid.
Inhalation Remove from exposure and move to fresh air immediately. Use oxygen if available.
Ingestion Give a least 2 glasses of milk or water. Induce vomiting unless patient is unconscious. Call a physician.
