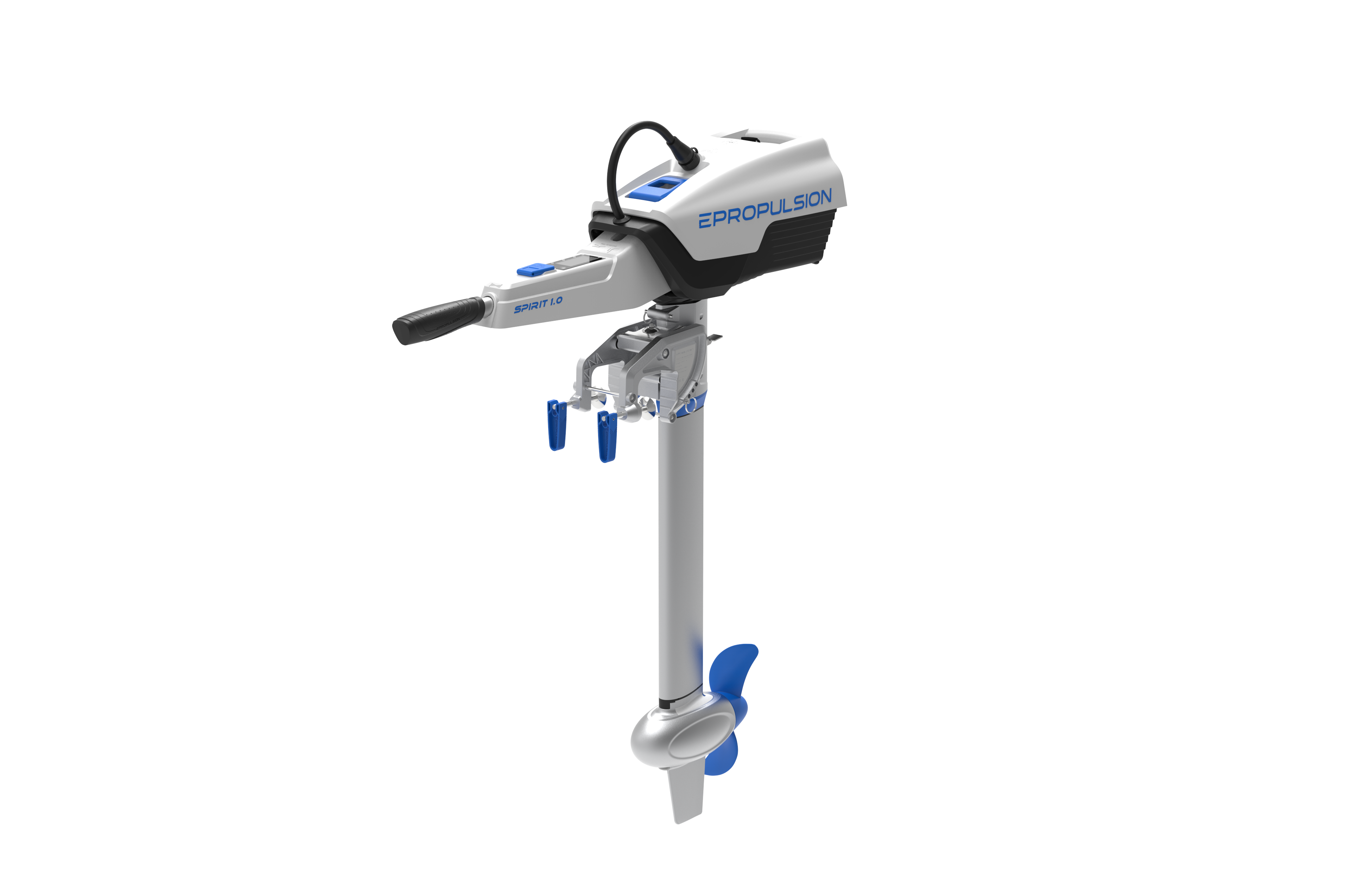

With its powerful direct drive, the Spirit 1.0 PLUS offers full power with minimal noise.

Electric outboard motors are absolutely silent, produce no exhaust gases and cause no un-necessary waves. Of course, they are not as lively as fuel driven engines. They are sufficient though for leisurely motion.

Fuel propelled engines are restricted entirely or at certain times from operation on some waters. Those waters are open though, only for the use of electric motors.

Max. speed depends on type of boat up to 10 km/h.
Range depends on type of boat and speed up to 85 km.

For GRABNER boats:
SPEED, MUSTANG S, MUSTANG, MUSTANG GT with standard supplied transom

ATTENTION SHIPPING:
This item can not be sent by air (due to dangerous goods regulations). The shipping costs therefore apply only to the land / sea route. For air freight, much higher shipping costs apply, which can be communicated to the order after receipt of the order.

For shipping by land, a dangerous goods rate of EUR 69, – is added to the shipping costs.

Note: Shipping by forwarding agent

Item no. 1734200000

2.199,00 EUR
- +
  • Product description
  • Technical data
  • Downloads
  • Hazard and safety instructions

Electric outboards are virtually noiseless and produce no exhaust fumes or unnecessary waves. Of course, they are not as "lively" as petrol engines.

  • The latest generation of outboards with unrivalled high efficiency.
  • Very powerful and maximum reach with low volume and weight.
  • The new direct drive makes the motor very quiet.
  • Fully waterproof (IP67*)
    * The motor is protected against dirt and water ingress (max. 30 minutes, max. 1 m).
  • A clean affair: no matter how and where you store your engine - no risk of leaks, no petrol odour
  • Clever and safe: the battery can swim!
  • Lithium polymer battery
  • Folding tiller for stepless speed regulation
  • LCD Display

Scope of delivery:

  • Motor
  • Battery 1276 Wh
  • Charger 180 W
  • Emergency stop magnetic chip



PERFORMANCE

full throttlehalf throttle
(ca. 250 watt)
slow
(ca. 65 watt)
up to 10 km/h7 km/h~4 km/h
1:15 h5 h19 h

Speed and travel time depend on the type of boat, total weight, wind and waves.

Input power1,000 Watt
Nominal voltage45,6 V DC
Battery power1,276 Wh
Max. Running time (35 Watt)36 h 25 min
Trim device0° 7° 14°  21°/ 70°
Dimension88 x 27.3 x 123,5 cm
Shaft length75 cm
Motor weight (without battery)10.8 kg
Battery weight8.7 kg
Protection class IP67yes
GebrauchsanweisungSPIRIT-1.0-Plus.pdf

Manufacturer information
alltechnik Handelsges. m.b.H
Allroundmarin
Rheinboldtstraße 11-13
2362 Biedermannsdorf
Austria
www.allroundmarin.at
office@allroundmarin.com

Hazard statements
This article is Rechargeable LI-ion Battery, Watt hour rate 378 Wh, which belong to he Class 9 - Lithium Battery hazard goods.

Safety instructions
Eye Flush eyes with plenty of water for a least 15 minutes, occasionally lifting the upper and lower eyelids. Get medical aid.
Skin Remove contaminated clothes and rinse with planty of water or shower for 15 minutes. Get medical aid.
Inhalation Remove from exposure and move to fresh air immediately. Use oxygen if available.
Ingestion Give a least 2 glasses of milk or water. Induce vomiting unless patient is unconscious. Call a physician.
